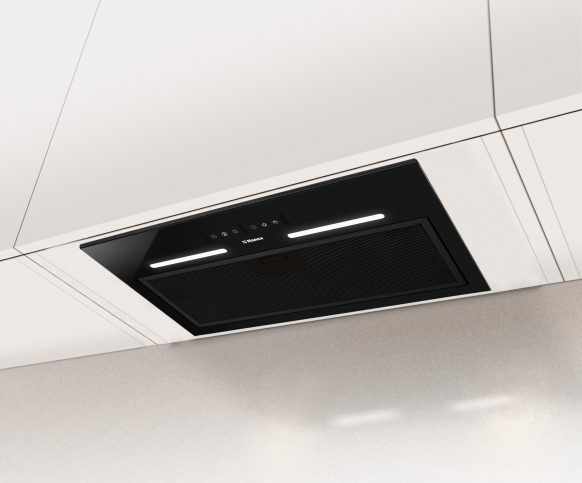

OMP6553BGH

1190548

Specification

FEATURES

Accessories - Air flaps Yes Delay Yes
Maximum time of delay 15 ' Panel - language version Pictograms Protection class of electric shock I_Class
Type of work Extraction/Recirculation

Equipment

Gesture control Yes Number of carbon filters 2 Number of grease filters 1
Number of layers in grease filter 5 Number of speed 3 Type of control Sensor
Type of grease filters Aluminium frame Carbon filter type FWP 18

Technical data

Air flow at 1 speed - extractor by EN 61591 364 m3/h Air flow at 2 speed - extractor by EN 61591 421 m3/h Air flow at 3 speed - extractor by EN 61591 462 m3/h
Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 462 m3/h Air Flow at Minimum Speed in Normal Use 364 m3/h Air Flow Rate at Best Efficiency Point - Q BEP 249.9 m3/h
Air Pressure at Best Efficiency Point P BEP 250 Pa Annual energy consumption 68.2 kWh Average Illumination of the Lighting System on the Cooking Surface - E middle 112.8 lux
Container qty 40'HQ 782 Control panel on one side/two sides One side Country of Origin on Rating Label Made in PRC
Dimensions of grease filter 492 x 162.5 mm black Display color White Distance from light cover to wall 63 mm
Distance to electric hob 450 mm Distance to gas hob 650 mm Electric Power Input at Best Efficiency Point - W BEP 117.9 W
Fluid Dynamic Efficiency - FDE hood 14.7 Fluid Dynamic Efficiency Class D Grease Filtering Efficiency - GFE hood 76 %
Grease Filtering Efficiency Class C Internal/external motor Internal Main lighting colour temperature [K] 6500 Lighting Efficiency - LE hood 22.6 lux/W Lighting Efficiency Class B Lighting Efficiency Class B Maximum Possible Air Flow 462 m3/h Motor unit rated power 150 W Motor type/model E series Net depth 290 mm Net height max 256 mm Net height min 256 mm Net weight 7.8 kg Net width 550 mm Noise level at 1 speed - extractor by EN 60704-2-13 59 dB Noise level at 2 speed - extractor by EN 60704-2-13 61 dB Noise level at 3 speed - extractor by EN 60704-2-13 63 dB Nominal Power of the Lighting System - W L 5 W Number of motor units 1 Number units of main lighting 1 Air exhaust diameter 150 mm Type of plug or cable Euro plug Power Consumption in Off Mode - Po 0.42 W Power cabel length 120 cm Power rating 155 W Power Supply Voltage 230V Power unit of main lighting 5 W Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 63 dB Sound Power Emission at Minimum Speed Available in Normal Use 59 dB Noise level 63 dB Time Increase Factor - f 1.5 Type of main lighting LED strip
